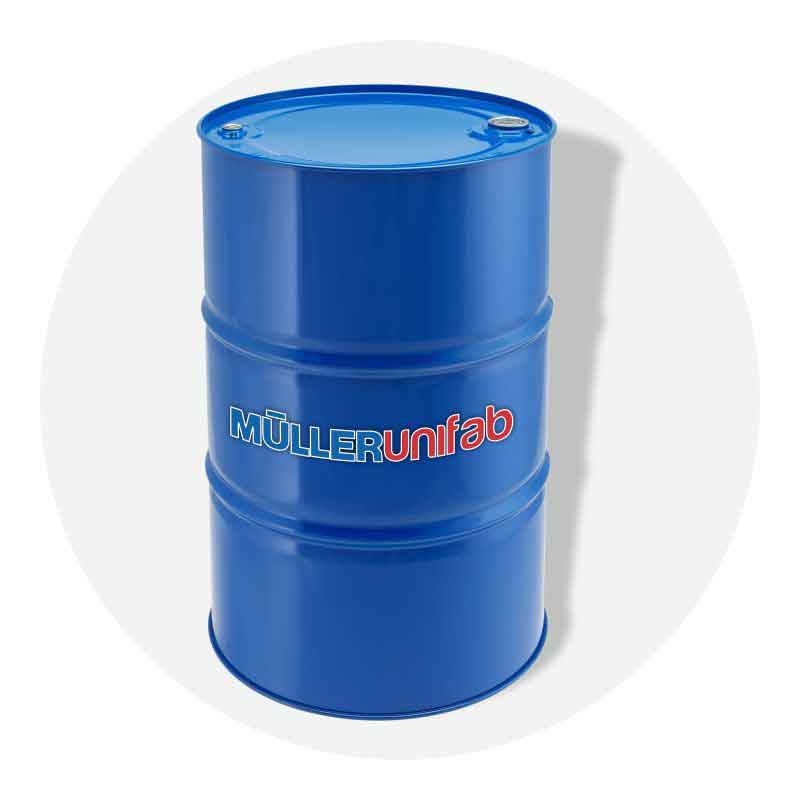

TIGHT HEAD BARREL

TIGHT HEAD BARREL
210 to 230 Liters

MüllerUnifab's triple seamed Tight Head Steel Barrels comply with the most stringent UN standards for packing non-dangerous and dangerous goods under Packaging Groups I, II and III. The standard capacity offered ranges from 210 L to 230 L.

Download Brochure Product Leaflet
Choice of any Colours Choice of any Colours

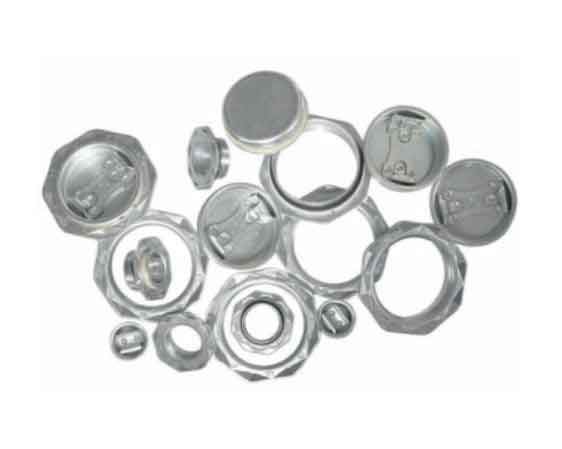

Choice of Closures Choice of Closures

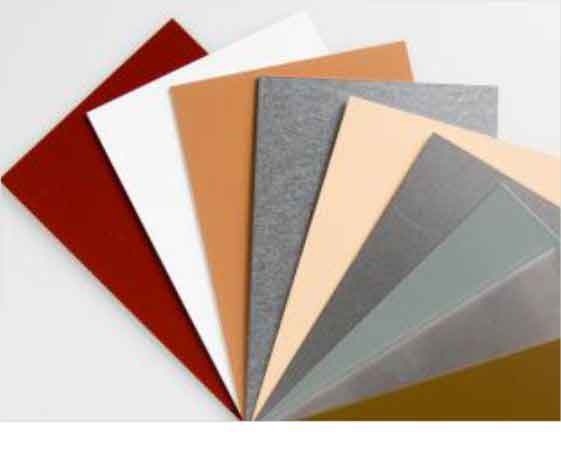

Choice of Internal Lacquering & Gaskets Choice of Internal Lacquering & Gaskets
PRODUCT FEATURES
PRODUCT FEATURES
  • Our Triple Seamed Barrels provide exceptional Leak Proofness
  • TITE-Seal™ or Tri-Sure® Bungs with threads complying to ISO-228
  • Full range of exterior coatings (stoving enamel, epoxy, polyurethane) to ensure high quality exterior finish and product differentiation
  • Full range of internal coatings (phenolic lacquer, epoxy phenolic lacquer) to ensure compatibility of the steel barrel with the filling good
  • Continuous electrical resistance seam welding of the body seam
  • Triple Seamed top & bottom injected with seaming compound
  • UN approved
CUSTOMISATION POSSIBILITIES
CUSTOMISATION POSSIBILITIES
  • Different sizes available for capacity of 210 L to 230 L
  • Customisation of internal coating & external painting
  • Available with or without rolling hoops & corrugation
  • Barrels available with W, Reduced & BIS type bead construction
  • Containerizable 210 L drums
  • Range of closure systems available to match the customer's filling goods unique product requirements
  • Closure capseals can be designed as per the customer's choice and design
  • Different steel thickness / gauge combinations
  • Multicolour combinations & multicolour screen prints
  • Choice of Fully automatic seaming compound applicator with epoxy / latex based seaming compound
  • Options of 2,3 or 4 nos. corrugation set on 1st & 3rd band of barrels
  • Food Grade certified internal coating
  • Factory Mutual (FM) approved Nylon Bungs for explosive material
  • Customized PTFE venting solutions
MATERIALS
MATERIALS
  • CRCA sheet complying to IS 513 (India), EN 10 130 (Europe) and JIS G 3141 (Japan) standards
  • Internal coating Epoxy Phenolic, Phenolic with pigmented or clear finish
  • Closures with NBR, PE, EPDM, Viton, PTFE (Teflon), Poly Irradiated gasket complying to IS 1784 (Indian Standard) or EN ISO 15750-3 (International Standard)
  • External paint - Pure Stoving Enamel, Epoxy Or Polyurethane paint
  • Food grade latex seaming compound
QUALITY ASSURANCE
QUALITY ASSURANCE
  • Built with Swiss know-how
  • Comprehensive Quality Management System (QMS) designed as per Mueller Group's QMS
  • Advanced ERP system for comprehensive product & process management
  • Higher and better Drop Test performance compared with IS standard to ensure high durability in the toughest transportation & storage conditions
  • Drop Tests and Hydraulic Tests meeting the most stringent UN standards are carried out for every batch
  • Products are suitable for better vacuum resistance
  • Our product range is UN approved. It complies with stringent UN regulations set for packing of dangerous goods under Packaging Groups I/X, II/Y, III/Z as per IMDG guidelines.
  • To ensure consistent paint shades, our products are standardised as per the international RAL colour system.
  • Every barrel is inspected in line for leakage
  • Our fully equiped and state-of-the-art Quality Lab is designed according to Mueller Group's guidelines
  • Global R&D Center based in Basel, Switzerland
  • Robust In-process Quality Control
MUPL Advantage
Our USPs, Your Benefits
  • Optimized and highly automated manufacturing process ensures high degree of internal cleanliness for the Food, Flavours & Fragrance, Speciality Chemicals and Pharmaceuticals Industry
  • Food Grade Certificate of internal lacquer coating for customers in the Food and Flavours & Fragrance Industry
  • State-of-the-art fully automatic 3 stage painting system to ensure high gloss & better surface finish of external paint
  • Various sizes and configuration available to meet the needs of discerning customers
  • Better stackability as a result of the robust design, engineering and manufacturing process
  • Better fitment inside shipping container to meet the needs of your export customers
  • Technical assistance in determining the ideal lining for customer's specific purpose to ensure product protection and compatibility where necessary.
No Type MOC Nominal Capacity In Litres Thicknessin mm (Top/Body/Bottom) Weight In Kgs. External Height in mm Bead Diameter in mm
1 Tight Head W Bead CRCA / GP SHEET 210 0.9/0.9/0.9 16 +/-0.5 883 +/-3 585 Max.
1.0/0.9/1.0 17 +/-0.5 883 +/-3 585 Max.
1.0/1.0/1.0 18 +/-0.5 883 +/-3 585 Max.
1.2/1.0/1.2 19 +/-0.5 883 +/-3 585 Max.
1.0/1.2/1.0 21 +/-0.5 883 +/-3 585 Max.
1.2/1.2/1.2 22 +/-0.5 883 +/-3 585 Max.
2 Tight Head BIS Bead Confirming to IS 1783 CRCA / GP SHEET 210 1.0/1.0/1.0 18 +/-0.5 878 +/-5 596 Max.
1.2/1.2/1.2 22 +/-0.5 878 +/-5 596 Max.

MOC - Material of Construction | CRCA – Cold Rolled Closed Annealed Steel

Developing solutions for your packaging needs

Download Brochure
