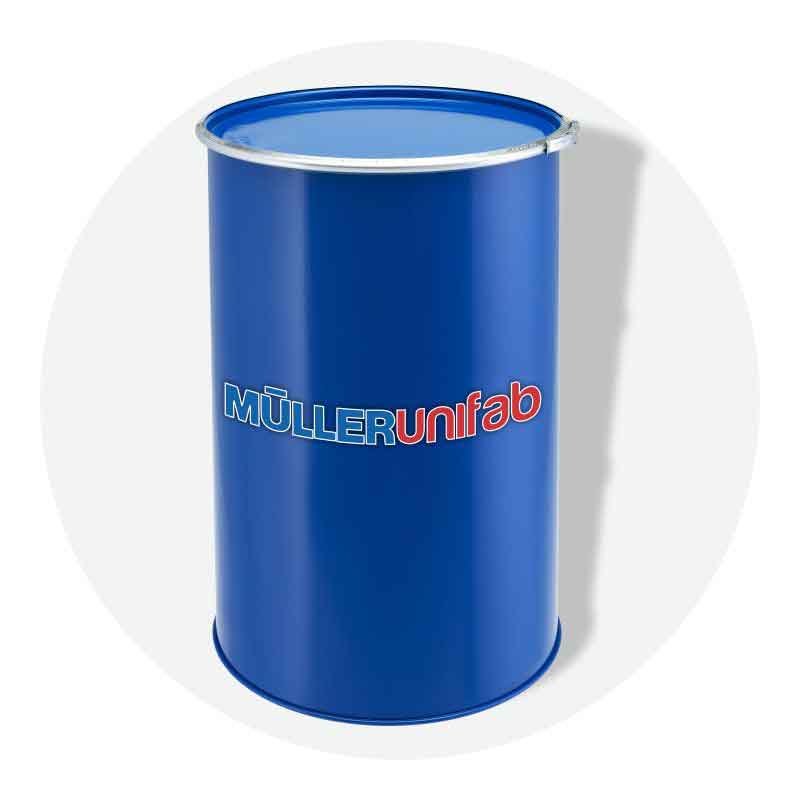

Open Head Barrels :: The MüllerUnifab Group

Our Triple Seamed Barrels provide exceptional Leak Proofness

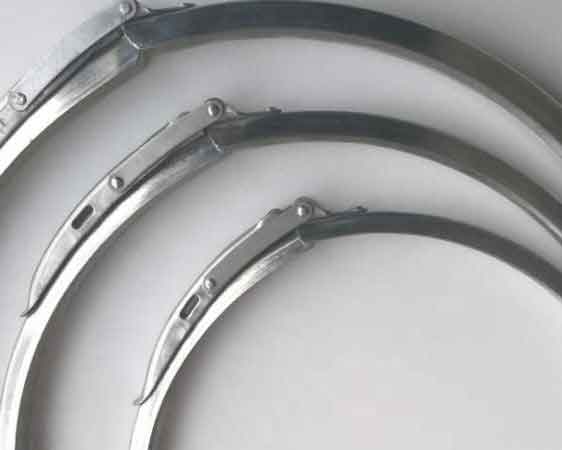

Full range of clamping rings
Full range of exterior coatings (stoving enamel, epoxy, polyurethane) to ensure high quality exterior finish and product differentiation
Full range of internal coatings (phenolic lacquer, epoxy phenolic lacquer) to ensure compatibility of the steel barrel with the filling good
Continuous electrical resistance seam welding of the body seam
Triple Seamed bottom injected with sealing compound
UN approved

Available with or without rolling hoop & corrugation
Barrels available with W, Reduced & BIS type bead construction
Range of clamping rings available to match the customer's filling goods unique product requirements
Different steel thickness/gauge combinations
Multicolour combinations & multicolour screen prints
Choice of Fully automatic seaming compound applicator with epoxy / latex based seaming compound
Options of 2, 3 or 4 nos. corrugation set on 1st & 3rd band of barrels

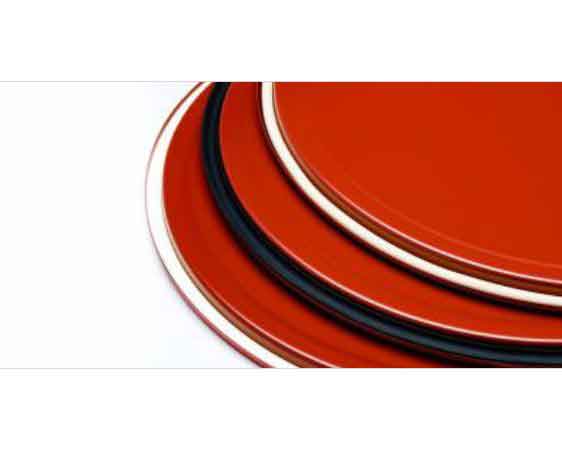

Options of EPDM or nitrile gasket in D type or tube type shape
Food Grade certified internal coating
Compatibility with Food Grade aseptic bag
Options of bungs on the top lid as per customer requirements

CRCA sheet complying to IS 513 (India), EN 10 130 (Europe) & JIS G 3141 (Japan) standards
Internal coating Epoxy Phenolic, Phenolic with pigmented or clear finish
GI Clamping rings
External paint - Pure Stoving Enamel, Epoxy & Polyurethane paint
Food grade latex seaming compound

Built with Swiss know-how
Comprehensive Quality Management System (QMS) designed as per Müller Group's QMS
Advanced ERP system for comprehensive product and process management
Our product range is UN approved. It complies with stringent UN regulations set for packing of dangerous goods under Packaging Groups I/ X, II / Y, III / Z as per IMDG guidelines.
To ensure consistent paint shades, our products are standardised as per the international RAL colour system.
Every barrel is inspected in line for leakage
Our fully equiped and state-of-the-art Quality Lab is designed according to Müller Group's guidelines
Global R&D Center based in Basel, Switzerland
Robust In-process Quality Control

Optimized and highly automated manufacturing process ensures high degree of internal cleanliness for the Food, Flavours & Fragrance, Speciality Chemicals and Pharmaceuticals Industry
Food Grade Certificate of internal lacquer coating for customers in the Food and Flavours & Fragrance Industry
State-of-the-art fully automatic 3 stage painting system to ensure high gloss & better surface finish of external paint
Various sizes and configuration available to meet the needs of discerning customers
Better stackability as a result of the robust design, engineering and manufacturing process
Technical assistance in determining the ideal lining for customer's specific purpose to ensure product protection and compatibility where necessary

No	Type	MOC	Nominal Capacity In Litres	Thicknessin mm (Top/Body/Bottom)	Weight In Kgs.	External Height in mm	Bead Diameter in mm
1	Open / Removable Head W Bead Confirming to ISO 15750-1	CRCA / GP SHEET	210	0.9/0.9/0.9	17.2 +/-0.5	878 +/-5	585 Max.
				1.0/0.9/1.0	17.7 +/-0.5	878 +/-5	585 Max.
				1.0/1.0/1.0	18.5 +/-0.5	878 +/-5	585 Max.
				1.2/1.0/1.2	19.5 +/-0.5	878 +/-5	585 Max.
				1.0/1.2/1.0	21.6 +/-0.5	878 +/-5	585 Max.
				1.2/1.2/1.2	22.5 +/-0.5	878 +/-5	585 Max.
2	Tight Head BIS Bead Confirming to IS 1783	CRCA / GP SHEET	210	1.0/1.0/1.0	18.5 +/-0.5	878 +/-5	596 Max.
2	Tight Head BIS Bead Confirming to IS 1783	CRCA / GP SHEET	210	1.2/1.2/1.2	22.5 +/-0.5	878 +/-5	596 Max.

MOC - Material of Construction | CRCA – Cold Rolled Closed Annealed Steel
