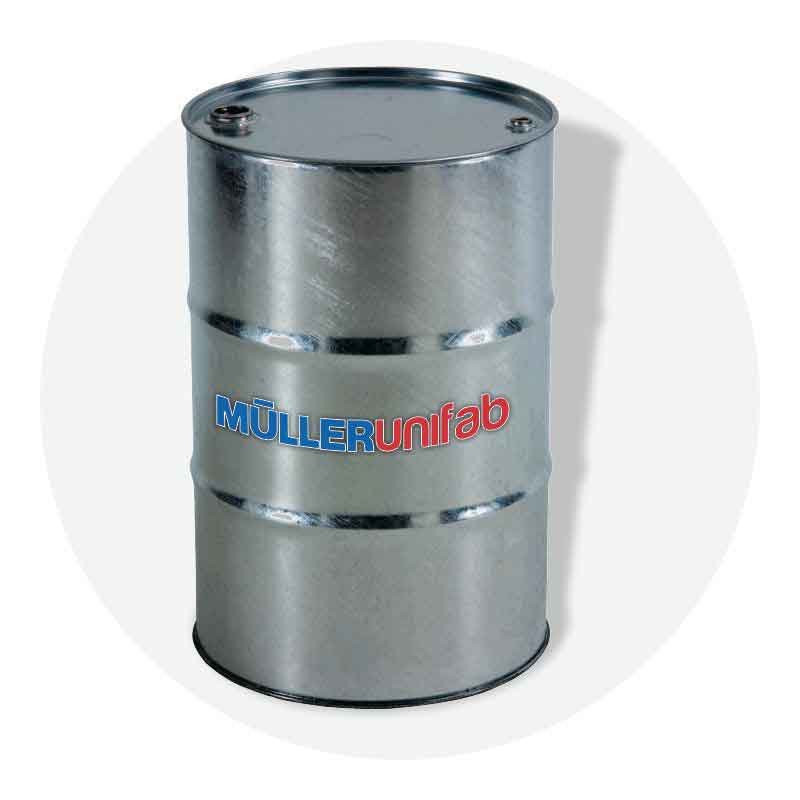

GI BARREL

GI BARREL
210 to 230 Liters

MüllerUnifab's Tight Head/Open Head GI Barrels made out of both sides hot dip galvanized sheets comply with the most stringent UN standards for packing non-dangerous and dangerous goods under the Packaging Groups I, II and III. The standard capacity offered ranges from 210 L to 230 L.

Download Brochure Product Leaflet
CHOICE OF CLOSURES CHOICE OF CLOSURES
CHOICE OF INTERNAL LACQUERING CHOICE OF INTERNAL LACQUERING
PRODUCT FEATURES
PRODUCT FEATURES
  • Our Triple Seamed Barrels provide exceptional Leak Proofness
  • TITE-Seal™ or Tri-Sure® Bungs with threads complying to ISO-228
  • Available with different coating thickness from 8 microns to 25 microns as per customer requirement
  • Continuous electrical resistance seam welding of the body seam
  • Triple Seamed top & bottom injected with seaming compound
  • UN approved
  • Available with or without rolling hoop & corrugation
  • Barrels available with W, Reduced & BIS type bead construction
CUSTOMISATION POSSIBILITIES
CUSTOMISATION POSSIBILITIES
  • Different sizes available for capacity of 210 L to 230 L
  • Customisation of coating thickness
  • Available with or without rolling hoops
  • Containerizable 210 L barrels
  • Range of closure systems available to match the customer's filling goods unique product requirements
  • Closure capseals can be designed as per the customer's choice and design
  • Different steel thickness/gauge combinations
  • Multicolour screen prints
  • Open top barrels available with EPDM or Nitrile rubber gasket in D type or tube type shape & lever type or nut bolt type locking ring
  • Choice of Fully automatic seaming compound applicator with epoxy / latex based seaming compound
  • Factory Mutual (FM) approved Nylon Bungs for explosive material
  • Options of 2, 3 or 4 nos. corrugation set on 1st & 3rd band of barrels
  • Customized PTFE venting solutions
MATERIALS
MATERIALS
  • Materials used: GP sheet complying to IS 277 (India), EN 10 142 (Europe) & JIS G 3302 (Japan) standards
  • Closures with NBR, PE, EPDM, Viton, PTFE (Teflon), Poly Irradiated gasket complying to IS 1784 (Indian Standard) or EN ISO 15750-3 (International Standard)
  • Food grade latex seaming compound
QUALITY ASSURANCE
QUALITY ASSURANCE
  • Built with Swiss know-how
  • Comprehensive Quality Management System (QMS) designed as per Müller Group's QMS
  • Advanced ERP system for comprehensive product & process management
  • Higher and better Drop Test performance compared to IS standard to ensure high durability in the toughest transportation and storage conditions
  • Drop Tests and Hydraulic Tests meeting the most stringent UN standards are carried out for every batch
  • Products are suitable for better vacuum resistance
  • Our product range is UN approved. It complies with stringent UN regulations set for packing of dangerous goods under Packaging Groups I / X, II / Y, III / Z as per IMDG guidelines.
  • Every barrel is inspected in line for leakage
  • Our fully equiped and state-of-the-art Quality Lab is designed according to Müller Group's guidelines
  • Global R&D Center based in Basel, Switzerland
  • Robust In-process Quality Control
MUPL Advantage
Our USPs, Your Benefits
  • Optimized and highly automated manufacturing process ensures high degree of internal cleanliness for the Food, Flavours & Fragrance, Speciality Chemicals and Pharmaceuticals Industry
  • Fully automatic edge grinding & coating facility for uniform coating of every barrel
  • Various sizes and configuration available to meet the needs of discerning customers
  • Better stackability as a result of the robust design, engineering and manufacturing process
  • Better fitment inside shipping container to optimize the capacity
Type Nominal Capacity In Litres Thicknessin mm (Top/Body/Bottom) Weight In Kgs. External Height in mm Bead Diameter in mm
GP Coated Sheet Barrels 210 1.0/1.0/1.0 18 +/-0.5 886 +/-3 585 Max.
1.2/1.2/1.2 22 +/-0.5 886 +/-3 585 Max.

#Galvanize Coating from 8 microns to 25 microns and Material thickness from
0.9 to 1.20 mm in any variant of Barrel can be produced as per requirement
